Understanding Complex Views in SQL Server: A Comprehensive Guide

What Are Complex Views in SQL Server?

A complex view in SQL Server is a virtual table that combines data from multiple tables, performs calculations, and applies joins, aggregations, or other transformations. Unlike simple views, which typically retrieve data from a single table, complex views involve intricate logic and multiple data sources to provide a derived and consolidated view of the data.

Key Characteristics of Complex Views:

• Multiple Tables: They often involve joins between two or more tables.
• Calculations and Aggregations: They can include computed columns, aggregate functions, or other transformations.
• Read-Only: Complex views are generally read-only, meaning you cannot directly update the underlying data through the view.
• Simplified Queries: They encapsulate complex logic, making it easier to query data without rewriting the same logic repeatedly.

Why Use Complex Views?

Complex views are particularly useful in the following scenarios:

• Simplifying Queries: Instead of writing lengthy queries with multiple joins and calculations, you can create a view and query it like a table.
• Encapsulating Logic: Views allow you to centralize complex logic, making it easier to maintain and reuse.
• Data Security: Views can restrict access to specific columns or rows, providing a layer of security.
• Performance Optimization: By precomputing results, views can improve query performance in some cases.

Example: Creating a Complex View in SQL Server

Let’s walk through an example to understand how complex views work. Suppose we have a database with the following tables:

Tables:

Employees:

| EmployeeID | Name       | DepartmentID | HireDate   |
|------------|------------|--------------|------------|
| 1          | John Doe   | 101          | 2020-01-15 |
| 2          | Jane Smith | 102          | 2019-05-20 |

Departments:

| DepartmentID | DepartmentName |
|--------------|----------------|
| 101          | HR             |
| 102          | Finance        |

Salaries:

| EmployeeID | SalaryAmount |
|------------|--------------|
| 1          | 50000        |
| 2          | 60000        |

Goal:

We want to create a view that combines employee names, department names, and their corresponding salaries.

Step 1: Create the Complex View

The following SQL statement creates a complex view named

vw_EmployeeSalaries:



CREATE VIEW vw_EmployeeSalaries
AS
SELECT
E.EmployeeID,
E.Name,
D.DepartmentName,
S.SalaryAmount
FROM
Employees E
JOIN
Departments D ON E.DepartmentID = D.DepartmentID
JOIN
Salaries S ON E.EmployeeID = S.EmployeeID;


Step 2: Query the Complex View

Once the view is created, you can query it like a regular table. For example, to retrieve employee names, department names, and their salaries, you can run:


SELECT Name, DepartmentName, SalaryAmount
FROM vw_EmployeeSalaries;


Result:


| Name       | DepartmentName | SalaryAmount |
|------------|----------------|--------------|
| John Doe   | HR             | 50000        |
| Jane Smith | Finance        | 60000        |

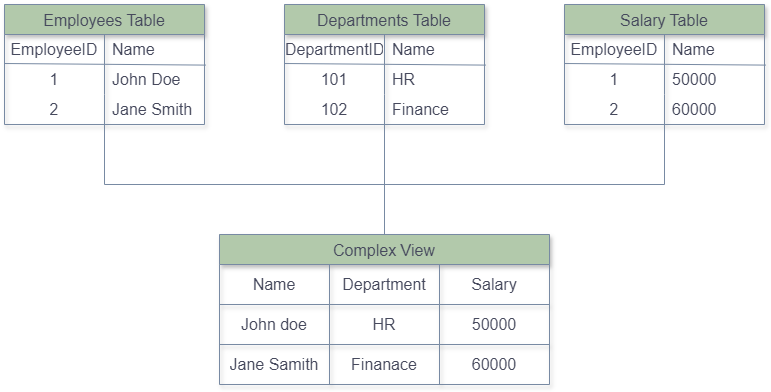

Visual Representation of the Complex View

To better understand how the complex view works, let’s visualize the process:

Benefits of Using Complex Views

• Simplified Querying: Instead of writing complex joins and calculations repeatedly, you can query the view directly.
• Centralized Logic: Changes to the underlying logic only need to be made in the view, not in every query.
• Improved Readability: Views make queries easier to read and understand.
• Data Security: You can restrict access to sensitive data by exposing only specific columns or rows through the view.

Limitations of Complex Views

• Read-Only: You cannot directly update data through a complex view.
• Performance Overhead: Complex views can sometimes slow down queries, especially if they involve large datasets or heavy computations.
• Dependency on Underlying Tables: If the structure of the underlying tables changes, the view may need to be updated.

Best Practices for Using Complex Views

• Optimize Joins and Calculations: Ensure the view’s logic is efficient to avoid performance issues.
• Use Indexes: Index the columns used in joins and filters to improve query performance.
• Regularly Review and Update: Periodically review the view’s logic to ensure it meets current requirements.
• Avoid Overcomplicating: Use views only when necessary to avoid creating unnecessary complexity.

Conclusion

Complex views in SQL Server are a powerful feature that can simplify your queries, encapsulate logic, and provide a unified view of your data. By combining data from multiple tables and performing calculations, they make it easier to work with complex datasets. However, it’s important to use them judiciously and optimize their performance to avoid potential drawbacks.
